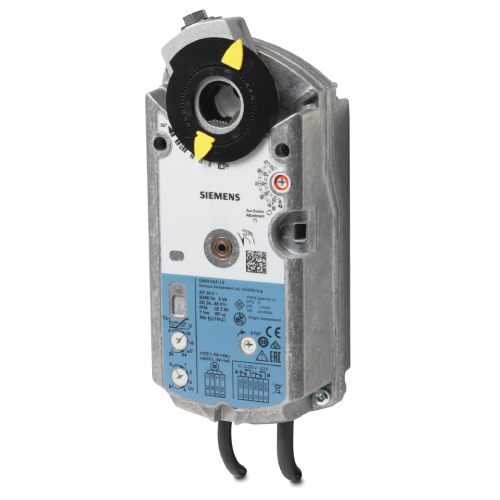

GMA163.1E - Siemens AC/DC 24V, DC 0-10V, 7 N/m spring return rotary damper actuator with DC 010V feedback and offset and span adjustment, 90s.

Deliveries take between 5 and 7 working days for all of the Siemens Actuators that IACS has on hand.

The Siemens GMA163.1E is an Actuator utilised in HVAC and air ventilation applications to handle dampers.

The force applied by the Torque of the GMA163.1E is 7 Nm.

This damper Actuator needs to be supported by a Power Supply of 24Vac/Vdc.

IACS offers the most economical Siemens Actuators for your system.

Refer to the Siemens custom datasheet above or email IACS for tailored support if you have any issues about size or installation.

GMA Actuators

With self-centering shaft adapter for shaft dia. 6.4...20.5 mm, square 6.4...13 mm, min. shaft length 20 mm

With position indication and adjustable mechanical limit stop

Manual override

With housing made of die-cast aluminium and 0.9 m connecting cable

Modbus RTU Communication
