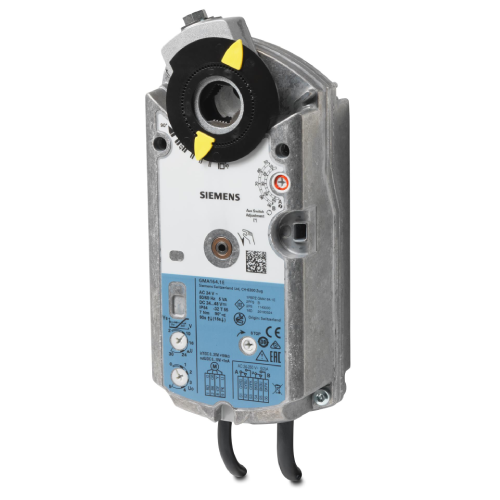

GMA164.1E - Siemens AC/DC 24V, DC 0-10V, 7 N/m spring return rotary damper actuator with 2 auxillary switches, DC 010V feedback and offset and span adjustment, 90s.

The delivery time for all of the Siemens Actuators on hand at IACS is 5 to 7 working days.

The Siemens GMA164.1E is an Actuator used in air ventilation and HVAC applications to open and close dampers.

The Torque used by the GMA164.1E is 7 Nm.

This Siemens Actuator requests a Power Supply of 24Vac/Vdc.

IACS has the most affordable Siemens Actuator that works with your system.

Consult the Siemens custom datasheet above or contact IACS via email for personalised assistance if you have queries about size or installation.

GMA Actuators

With self-centering shaft adapter for shaft dia. 6.4...20.5 mm, square 6.4...13 mm, min. shaft length 20 mm

With position indication and adjustable mechanical limit stop

Manual override

With housing made of die-cast aluminium and 0.9 m connecting cable

Modbus RTU Communication
