HSU01DC000 - Carel Ultrasonic humidifier for display cabinet, capacity 1 l/h

The HSU01DC000 - Ultrasonic humidifier for display cabinet, capacity 1 l/h i humiSonic piezoelectric humidifier has been designed for applications in cold rooms or display cabinets, with minimum energy consumption.Piezoelectric transducers immersed in water turn electricity into high-frequency mechanical vibrations, atomising the water into an extremely fine mist.

This humiSonic piezoelectric humidifier has been designed for applications in cold rooms or display cabinets, with minimum energy consumption. Piezoelectric transducers immersed in water turn electricity into high-frequency mechanical vibrations, atomising the water into an extremely fine mist.

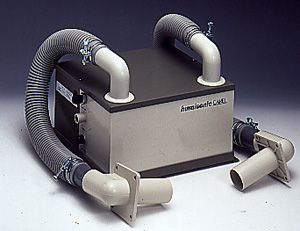

The mechanical unit is completely made of stainless steel and is fitted with a fan and several flexible ducted outputs for the inlet of atomised water into the cold rooms or display cabinets.

Each unit is fitted with the following components
- Piezoelectric transducers (which vary according to the maximum water flow)
- Fill valve
- Fill water float switch
- Protection float switch in case of absence of water
- Thermal protection in case of overheating

The humidifier comes complete with 4 m electric cable for connection to the electrical panel.

Power supply	48 Vac
Power input	100 to 670 VA depending on the model
Operating conditions	5T40 °C, <90% rH
Srorage conditions	-20T70 °C, <90% rH
Water supply	Demineralised water
Water supply conductivity	<5 µsiemens/cm
Water supply pressure	0.5 to 6 bar
Water supply temperature	5T40 °C
Water fill	Quick connection for TNF 8/10 plastic tubing
Water drainage	Connection 13 mm
Overfill drain	Connection: 13 mm
Index of protection	IP30
