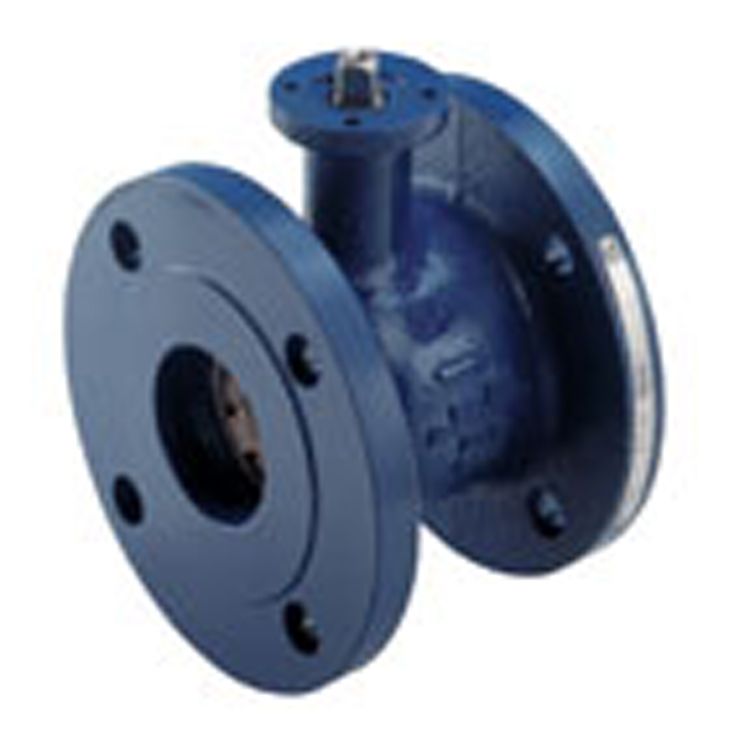

R6125W250-S8 - Belimo 2-way characterised control valve (CCV), PN16

All Belimo Characterised Valves with iacs that are in stock are supplied for free or within 1-2 days.

The Belimo R6125W250-S8 is a Valve used in HVAC systems (heating, ventilation, and air conditioning) systems as a control or shutdown Valve.

The Pressure Nominal of this type of Belimo Valve is PN 16.

It is an identified Valve with a Nominal Diameter of DN 125.

This R6125W250-S8 Belimo Valve has 2 port opening connection.

You can find the best Belimo Valve for your system at the greatest price at iacs.

If you have questions about size or installation, consult the Belimo custom datasheet above or contact iacs through email for personalised assistance.

Features

• Mode of operation The characterized control valve is operated by a rotary actuator. The actuator is controlled by a standard modulating or 3-point control system and moves the ball of the valve – the throttling device – to the opening position dictated by the control signal. Open the ball valve counterclockwise and close it clockwise.


• Flow characteristic Equal-percentage characteristic of the flow rate ensured by the integral characterizing disc.

•     Functional data Flow media Cold and hot water, water with max. 50% volume of glycol
•     Temperature of medium +5°C ... +120°C (–10 .... +5°C on request)
•     Rated pressure p_s see «Type overview»
•     Flow characteristic Control path A – AB: equal percentage (to VDI/VDE 2178) n(gl): see «Type overview»
•     Rangeability S_v See «Type overview»
•     Leakage rate A: air bubble-tight (to EN12266-1)
•     Pipe connector Flange PN 16 (to EN 1092/1)
•     Differential pressure Δp_vmax 400 kPa, Closing pressure Δp_s 600 kPa
•     Angle of rotation 90°<) (Operating range 15 ... 90°<)
•     Installation position Upright to horizontal (in relation to the stem)
•     Maintenance Maintenance-free
•     Materials Fitting EN-JL1040 (GG25 paint)
•     Valve ball Stainless steel AISI 316
•     Stem Stainless steel AISI 304
•     Stem seal EPDM Perox
•     Ball seat PTFE
•     Characterizing disk Stainless steel
•     Dimensions / Weights see «Dimensions and weights», page 3
•     Motorizing see the complete overview of water solutions
