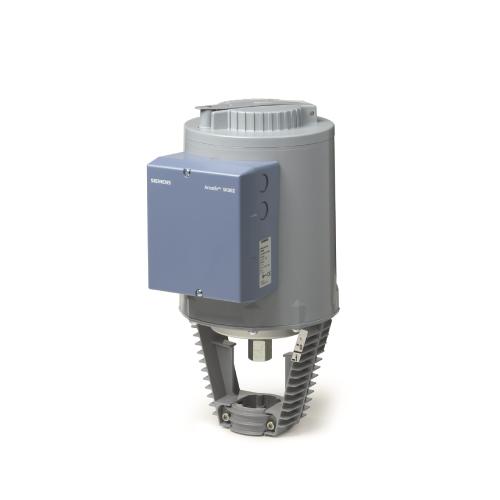

SKB62 - Siemens Valve Actuator, 2800 N | ideal for 2-port valves, 3-port valves, type series VVF.., VVG.., VXF and VXG.. | Operating Voltage AC 24 V

The Siemens SKB62 is an Electrohydraulic actuator with a Torque of 2800 N.

Electro-hydraulic actuators for valves
with a 20 mm stroke
● SKB32.. Operating voltage AC 230 V, 3-position control signal
● SKB82.. Operating voltage AC 24 V, 3-position control signal
● SKB6.. Operating voltage AC 24 V
– Control signal DC 0...10 V, 4...20 mA or 0...1000 Ω
– SKB62/MO RS-485 for Modbus RTU communication
– Selection of flow characteristic, position feedback, stroke calibration, LED
status indication, override control
– SKB62UA with selection of direction of operation, stroke limit control,
sequence control with adjustable start point and operation range, operation of
frost protection monitors QAF21.. and QAF61..
● Positioning force 2800 N
● Versions with or without spring-return function
● For direct mounting on valves; no adjustments required
● Manual adjuster and position indicator
● Optional functions with auxiliary switches, potentiometer, stem heater and
mechanical stroke inverter
● SKB..U are UL-approved
