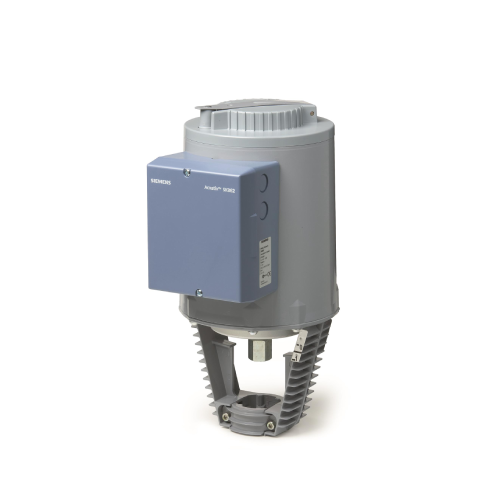

SKC32.61 - Siemens Electrohydraulic actuator, 2800 N, 40 mm, AC 230 V, 3P, spring return

Electro-hydraulic actuators for valves with a 40 mm stroke ● SKC32.. Operating voltage AC 230 V, 3-position control signal ● SKC82.. Operating voltage AC 24 V, 3-position control signal ● SKC6.. Operating voltage AC 24 V, – Control signal DC 0...10 V, 4...20 mA or 0...1000 Ω – SKC62/MO RS-485 for Modbus RTU communication – Selection of flow characteristic, position feedback, stroke calibration, LED status indication, override control – SKC62UA with selection of direction of operation, stroke limit control, sequence control with adjustable start point and operation range, operation of frost protection monitors QAF21.. and QAF61.. ● Positioning force 2800 N ● Versions with or without spring-return function ● For direct mounting on valves; no adjustments required ● Manual adjuster and position indicator ● Optional functions with auxiliary switches, potentiometer and stem heater ● SKC..U are UL-approved
