SKU
UE003WDC01

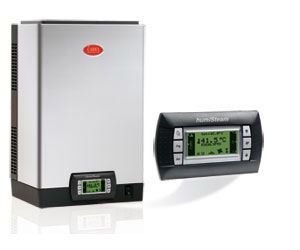

UE003WDC01 - Carel humiSteam Wellness, Steam Humidifier, Isothermal Immersed electrode humidifier, 3 kg/h, 230 V single phase, with internal regulation, cleanable cylinder
£2,398.96
£1,999.13
On request
Next Supplier Stock Update: 18/10/2026
Manuals & Datasheets
BROCHURE
| Code | Description | Language | Date | Release |
|---|---|---|---|---|
| +302240551 | Humidity control in printing applications | ENG | 27/05/2008 | 1.0 |
| +302238341 | humiSteam: the evolution of the species of electrode humidifiers | ENG | 01/03/2008 | 1.0 |
| +302238591 | Humidity control in clean rooms | ENG | 12/09/2007 | 1.0 |
| +302240461 | "Wellness", the new immersed electrode steam generator for steam baths | ENG | 01/03/2006 | 1.0 |
MANUAL
| Code | Description | Language | Date | Release |
|---|---|---|---|---|
| +0300060EN | humiSteam Wellness humidifiers for steam baths | ENG | 03/09/2012 | 1.2 |
| +030220486 | Service humidification Isothermal and adiabatic humidifiers | ENG | 01/09/2008 | 1.0 |
| Product type | Humidifiers & Spares |
| IP rating | IP20 |
| Manufacturer | Carel |
| Power Supply | 230Vac, 1Ph, 50Hz |
| Capacity | 3 Kg/h |
| Control's Type | Wellness |
| Humidifier Type | Humi Steam |
| Cylinder Type | Cleanable |
iacs carries the entire spectrum of Carel Humidification components for your HVAC system.
The HumiSteam Wellness model was created specifically to meet the needs of applications that involve steam baths.
The Carel UE003WDC01 is a isothermal humidifier crafted to fulfil the common requirements of steam bath applications.
The Steam production is 3 Kg/h.
The Power Supply for this humidifier is 230 V.
For technical advice, refer to the Carel manualsheet and contact our iacs technical support team.
The type “X” humiSteam humidifiers have a built-in controller with graphic display and keypad for programming and controlling operation.
The following modes can be selected at any time:
- ON/OFF by external humidistat
- Proportional based on an external voltage or current signal
- Proportional based on an external signal plus a safety limit probe in the duct
- Modulating based on the set point and a humidity probe reading
- Modulating based on the set point, a humidity probe reading and a limit probe in the duct
- Modulating based on the set point and the reading of an external temperature probe (e.g. steam baths)
- Controlled by BMS
The steam flow-rate is modulated continuously from 20 to 100% of maximum capacity (10 to 100% in the 90 and 130 kg/h models), except for in ON/OFF mode, when production is “all-or-nothing”.
The type “X” humiSteam humidifiers can accept the following external signals, selected on the keypad: voltage-free contact from a humidistat, 0 to 1 V, 0 to 10 V, 2 to 10 V, 0 to 20 mA, 4 to 20 mA.
The type “x” controllers exploit all the advantages of pco technology, the family of CAREL programmable controllers:
- Simplicity, with the graphic display and messages in diff erent languages
- Operation with daily and weekly time bands & variable set points
- BMS connectivity via various types of LAN (e.g.: Modbus®, BACnet™, LON®)
- Complete diagnostics with text messages, alarm log with time stamping
- Remote diagnostics via GSM (optional)
- Automatic draining in standby
| Rated steam production (kg/h) | 3 |
| Power input (kW) | 2.25 |
| Power supply | 230 Vac (+10 to -15%), 50/60 Hz single-phase |
| Steam connection (mm) | Ø 22/30 |
| Outlet pressure limits (Pa) | 0-1500 |
| Number of boilers | 1 |
| Operating conditions | 1T40 °C, 10 to 90% rH non-condensing |
| Storage conditions | -10T70 °C, 5 to 95% rH non-condensing |
| Index of protection | IP20 |
| Water fill | |
| Connection | 3/4”G male |
| Temperature limits (°C) | 1T40 |
| Water pressure limits (MPa-bar) | 0.1 to 0.8 - 1 to 8 |
| Instant flow-rate (l/m) | 0.6 |
| Total hardness (°fH) | ≤40 |
| Conductivity limits (µS/cm) | 75 to 1250 |
| Water drain | |
| Connection | Ø 40 |
| Temperature (°C) | 4.2/2000 |
| Instant flow-rate (l/m) | 7 |
| Steam blower | |
| Number | 1 |
| Type | VSDU0A |
| Power supply (Vac) | 24 |
| Rated power (W) | 37 |
| Rated air flow (m3/h) | 192 |
| Network | |
| Integrated network connections | UEX & UEY: Modbus® |
| Optional network connections | UEX & UEW: RS485, BACnet™, LON®, Ethernet™, RS232 + GSM (optional) |
| Controller | UEY / UEX / UEW |
