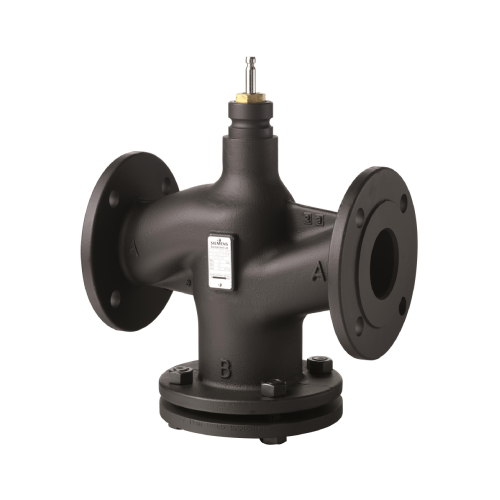

VVF53.15-4 - Siemens 15mm 2-port flanged cast iron seat valve with stainless steel trim, PN25, -20+220C - kvs = 4

Find all the components for your ventilation system at IACS. All Siemens Valves in stock are ready for delivery in 5 to 7 days.

The Siemens VVF53.15-4 is a Valve used in HVAC Systems and Building control applications.

This Siemens Valve has a Pressure Nominal of PN 25.

The Quantity of flow that this Ball Valve manages is KWS 4.

Find the best-priced Siemens Seat Valve that is compatible with your system at IACS.

If you have questions about size or installation, consult the Siemens custom datasheet above or send an email to iacs to get personalised guidance.

This valve is used in boiler, district heating and refrigeration plants, heating groups, ventilation and air handling units as control or shutoff valves.

VVF53 valves:

• High-performance valves for medium temperatures from -20…220 °C
• Valve body of nodular cast iron EN-GJS-400-18-LT or higher
• DN 15…250
• kvs 0.16…630 m3
/h
• Flange type 21, flange design B
• VVF53..K with pressure compensation to handle high differential pressure
• Equipable with electro-motoric actuators SAX.., SAV.. or electro-hydraulic
actuators SKD.., SKB.., SKC..
