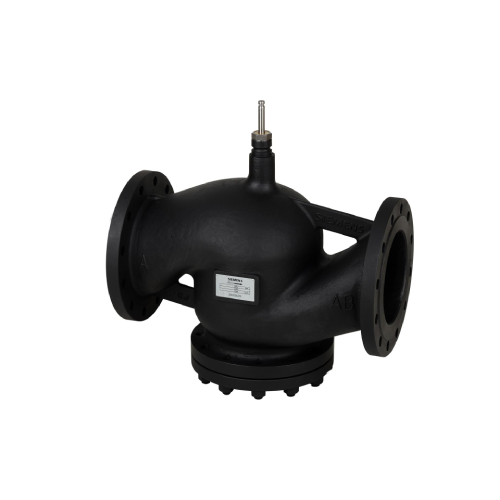

VVF53.200-450K - Siemens 200mm 2-port flanged cast steel seat valve with stainless steel trim, PN25, pressure compensated, -20+220C - kvs = 450

At IACS, you can find every part of your ventilation system. All Siemens-made Valves in stock are suitable for delivery within 5 to 7 days.

The Siemens VVF53.200-450K is a Valve used in building control and HVAC systems.

This Seat Valve provides a Pressure Nominal of PN 25.

The Amount of flow that this Ball Valve manages is KWS 450.

At IACS, you can get the best Siemens Valve for your system at the right price.

Consult the Siemens custom datasheet above or contact iacs via email for personalised assistance if you have queries about size or installation.

This valve is used in boiler, district heating and refrigeration plants, heating groups, ventilation and air handling units as control or shutoff valves.

VVF53 valves:

• High-performance valves for medium temperatures from -20…220 °C
• Valve body of nodular cast iron EN-GJS-400-18-LT or higher
• DN 15…250
• kvs 0.16…630 m3
/h
• Flange type 21, flange design B
• VVF53..K with pressure compensation to handle high differential pressure
• Equipable with electro-motoric actuators SAX.., SAV.. or electro-hydraulic
actuators SKD.., SKB.., SKC..
