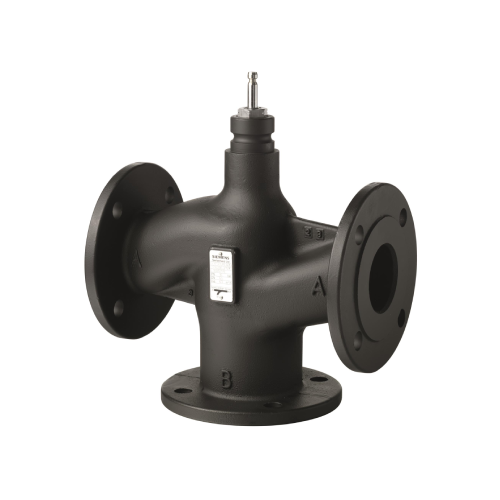

VXF43.150-315 - Siemens 150mm 3-Port flanged cast iron seat valve with stainless steel trim, PN16, -20+220C - kvs = 315

Find all the components for your ventilation system at IACS. All Siemens Valves in stock are ready for delivery in 5 to 7 days.

The Siemens VXF43.150-315 is a Valve used in HVAC Systems and Building control applications.

The Pressure Nominal that this Valve offer is PN 16.

The Amount of flow that this Ball Valve manages is KWS 315.

Find the best-priced Siemens Seat Valve that is compatible with your system at IACS.

If you have questions about size or installation, consult the Siemens custom datasheet above or send an email to iacs to get personalised guidance.

VXF43 Valves:

• High-performance valves for medium temperatures from -20…220 °C
• Valve body of nodular cast iron EN-GJS-400-18-LT or higher
• DN 65…250
• kvs 50…630 m3/h
• Flange type 21, flange design B
• VVF43..K with pressure compensation to handle high differential pressure
• Equipable with electro-motoric actuators SAV.. or electro-hydraulic actuators SKC..
Use
In boiler, district heating and refrigeration plants, cooling towers, heating groups, and in air handling units as control or shutoff valves.
For use in closed or open hydraulic circuits (observe cavitation).
