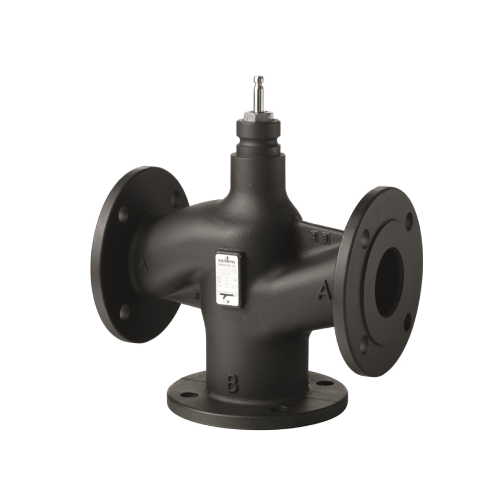

VXF43.80-80 - Siemens 80mm 3-Port flanged cast iron seat valve with stainless steel trim, PN16, -20+220C - kvs = 80

All Siemens-made Valves that are in stock with iacs are delivered within 5 to 7 days.

The Siemens VXF43.80-80 is a Valve employed in building control applications and HVAC systems.

This Siemens Valve has a Pressure Nominal of PN 16.

The Quantity of flow that this Ball Valve manages is KWS 80.

The ideal Siemens Valves for your system are most affordable at IACS.

If you have questions concerning size or installation, refer to the Siemens custom datasheet above or email iacs for individualised support.

VXF43 Valves:

• High-performance valves for medium temperatures from -20…220 °C
• Valve body of nodular cast iron EN-GJS-400-18-LT or higher
• DN 65…250
• kvs 50…630 m3/h
• Flange type 21, flange design B
• VVF43..K with pressure compensation to handle high differential pressure
• Equipable with electro-motoric actuators SAV.. or electro-hydraulic actuators SKC..
Use
In boiler, district heating and refrigeration plants, cooling towers, heating groups, and in air handling units as control or shutoff valves.
For use in closed or open hydraulic circuits (observe cavitation).
