SKU
SAY31P03

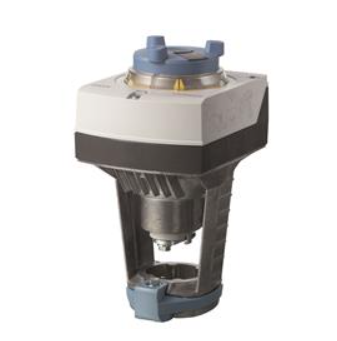

SAY31P03 - Valve Actuator 200 N | ideal for combi valves for type series VPI46.40F9.5Q and VPI46.50F12Q | Operating Voltage AC 230 V
£227.99
£189.99
On request
Next Supplier Stock Update: 17/10/2026
Manuals & Datasheets
| DATA-SHEET |
 |
| Product type | Actuator |
| IP rating | IP54 |
| Manufacturer | Siemens |
| Power Supply | 115 to 230Vac |
| Torque | 200 N |
| Running time | 30 to 45 sec |
| Actuator type | Rotary |
| Ideal for | combi valves |
| size | 238 x 124 x 150 mm |
For all of the Siemens Actuators that are in stock at IACS, we offer 5 to 7 Working Days Delivery.
The Siemens SAY31P03 is a type of Actuator used to control Valve in HVAC systems and applications.
The Torque force applied by the SAY31P03 is 200 N.
The Power Supply requested for this Valve Actuator is 115 to 230Vac.
IACS has the most affordable Siemens Actuator that works with your system.
Consult the Siemens custom datasheet above or contact IACS via email for personalised assistance if you have queries about size or installation.
| Positioning force | 200 N |
| Stroke | 15 mm |
| Power consumption | 6 VA |
| Positioning time | 30 s |
| Positioning signal | 3-position |
| Spring return function | No |
| Degree of protection | IP54 |
| Ambient temperature, operation | 5...55 °C |
| Medium temperature | 1…120 °C |
| Mounting position | Upright to horizontal |
| Operating voltage | AC 230 V |
| Position feedback | - |
