SAY81P03 - Valve Actuator 200 N | ideal for combi valves for type series VPI46.40F9.5Q and VPI46.50F12Q | Operating Voltage AC/DC 24 V

£227.99 £189.99

On request

Next Supplier Stock Update: 17/10/2026

Manuals & Datasheets

DATA-SHEET

For any Siemens Actuators that are in stock at IACS, we offer 5 to 7 Working Days Delivery.

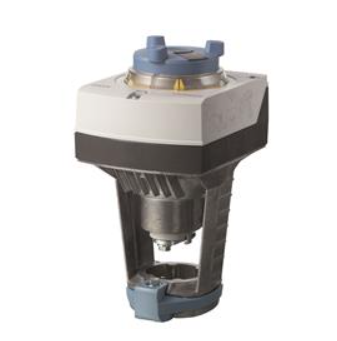

The Siemens SAY81P03 is a type of Actuator used to open Valve in HVAC systems and applications.

The Torque used by the SAY81P03 is 200 N.

This Siemens Actuator requests a Power Supply of 24Vac/Vdc.

IACS has the most affordable Siemens Actuator that works with your system.

Consult the Siemens custom datasheet above or contact IACS via email for personalised assistance if you have queries about size or installation.

Positioning force	200 N
Stroke	15 mm
Power consumption	5 VA
Positioning time	30 s
Positioning signal	3-position
Spring return function	No
Degree of protection	IP54
Ambient temperature, operation	5...55 °C
Medium temperature	1…120 °C
Mounting position	Upright to horizontal
Operating voltage	AC 24 V, DC 24 V
Position feedback	-
