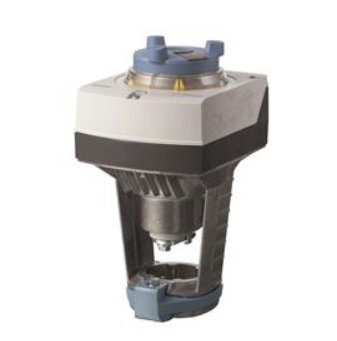

SAY61P03 - Valve Actuator 200 N | ideal for combi valves for type series VPI46.40F9.5Q and VPI46.50F12Q | Operating Voltage AC/DC 24 V

£275.99 £229.99

On request

Next Supplier Stock Update: 17/10/2026

Manuals & Datasheets

DATA-SHEET

We provide 5 to 7 Working Days Delivery for all Siemens Actuators that are in stock at IACS.

The Siemens SAY61P03 is a kind of Actuator used to operate Valve in HVAC applications and systems.

The force applied by the Torque of the SAY61P03 is 200 N.

This Valve Actuator needs to be supported by a Power Supply of 24Vac/Vdc.

You may find the ideal Siemens Actuator for your system at IACS for a reasonable price.

If you have questions concerning size or installation, refer to the Siemens custom datasheet above or email IACS for individualised support.

Positioning force	200 N
Stroke	15 mm
Power consumption	8 VA
Positioning time	30 s
Positioning signal	DC 0...10 V, DC 4...20 mA, 0...1000 Ohm
Spring return function	No
Degree of protection	IP54
Ambient temperature, operation	5...55 °C
Medium temperature	1…120 °C
Mounting position	Upright to horizontal
Operating voltage	AC 24 V, DC 24 V
Position feedback	DC 0...10 V
