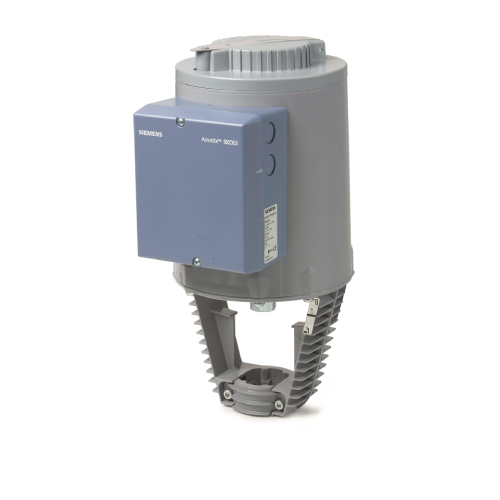

SKC62 - Siemens Valve Actuator, 2800 N | ideal for 2-port valves, 3-port valves, type series VVF and VXF.. | Operating Voltage AC 24 V

The Siemens SKC62 Valve Actuator is a high-quality, versatile device designed to precisely control the movement of valves in industrial applications. With a stroke of 40mm, this actuator is capable of accurately positioning valves to meet specific requirements.

The actuator's spring return function, known as SKC62, ensures that valves return to their original position in the event of a power failure, thereby preventing unwanted flow or leakage. Additionally, the device offers multiple positioning signal options, including DC 0...10 V, 4...20 mA, and 0...1000 Ohm.

The Siemens SKC62 Valve Actuator also features position feedback capabilities, including DC 0...10 V and DC 4...20 mA. This allows users to easily monitor and adjust valve positioning as needed, ensuring optimal performance and efficiency.

The actuator boasts a degree of protection of IP54, making it suitable for use in harsh environments where it may be exposed to dust, water, or other potentially damaging elements. It is also capable of operating in medium temperatures ranging from -25…220 °C and ambient temperatures between -15...55 °C.

Installation of the device is simple and can be done in an upright to horizontal mounting position. The dimensions of the actuator are 178 x 375 x 226 mm, making it compact enough to fit into a wide range of installations.

In summary, the Siemens SKC62 Valve Actuator is a reliable, high-performance device that offers precise valve positioning and easy monitoring capabilities. Its robust design and versatility make it an ideal choice for a wide range of industrial applications.
