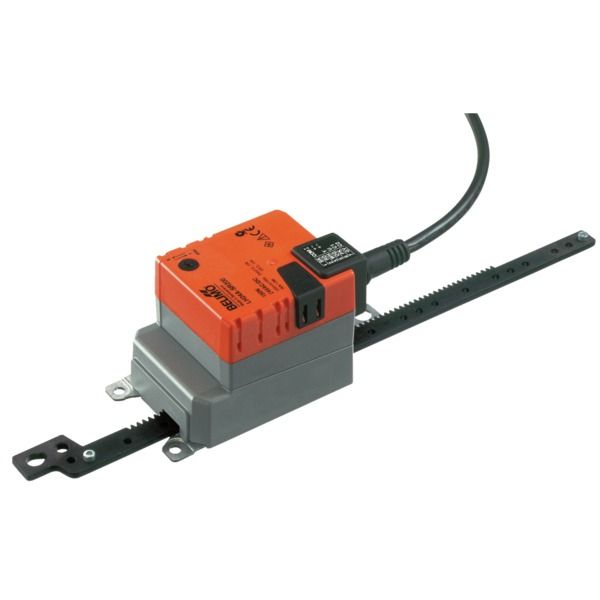

LH24A-SR200 - Belimo Linear actuator with rack 150 N, 150 s / 100 mm / constant, AC / DC 24 V

Find all the components for your ventilation system at IACS. All Belimo Actuators on hand are eligible for Free Delivery and 1-2 Delivery.

The Belimo LH24A-SR200 is a kind of Actuator used in HVAC applications and air ventilation systems.

The Torque used by the LH24A-SR200 is 150 N.

This Belimo Actuator requests a power supply of 24Vac/Vdc.

Find at IACS the ideal Belimo Actuator compatible with your system at the best price.

If you are unsure about size or installation, refer to the Belimo custom datasheet above or message iacs to receive special instructions and a custom quote.

LH24A-SR200 - Linear actuator with rack 150 N, 150s/100 mm constant AC / DC 24 V

•   modulating Stroke range 0...100 mm
•   IP 54, Manual override by means of push-button
•   Operating range DC 2...10 V for stroke 0...200 mm
•   Position feedback DC 2...10 V
•   Connection PVC cable 1m

Features

• Mode of operation The actuator is controlled with a standard modulating signal of DC 0 ... 10 V and travels to the position defined by the control signal. Measuring voltage U serves for the electrical display of the damper position 0 ... 100% and as slave control signal for other actuators.
• Manual override Manual operation is possible with the pushbutton (the gearing latch remains disengaged as long as the pushbutton is pressed or detented).
• High functional reliability The actuator is overload-proof, requires no limit switches and automatically stops when the end stop is reached.

•     Electrical data Nominal voltage AC 24 V, 50/60 Hz / DC 24 V
•     Power supply range AC/DC 19.2 ... 28.8 V
•     Power consumption In operation 1.5 W @ nominal force
•     At rest 0.5 W
•     For wire sizing 3 VA
•     Connection Cable 1 m, 3 x 0.75 mm2
•     Functional data Actuating force 150 N @ nominal voltage
•     Control Control signal Y DC 0 ... 10 V, input impedance 100 k
•     Operating range DC 2 ... 10 V (See also «Overview of types»)
•     Position feedback (Measuring voltage U) DC 2 ... 10 V, max. 1 mA
•     Position accuracy ±5%
•     Stroke See «Overview of types»
•     Direction of stroke at Y = 0 V Reversible with switch 1 resp. 0
•     Running time 150 s / 100 mm
•     Sound power level <35 dB (A)
•     Safety Protection class III Safety extra-low voltage
•     Degree of protection IP54 in any mounting position
•     EMC CE according to 89/336/EEC
•     Mode of operation Type 1 (to EN 60730-1)
•     Rated impulse voltage Supply 0.8 kV (to EN 60730-1) Control 0.8 kV (to EN 60730-1)
•     Control pollution degree 3 (to EN 60730-1)
•     Ambient temperature –30 ... +50°C
•     Non-operating temperature –40 ... +80°C
•     Ambient humidity 95% r.h., non-condensating
•     Maintenance Maintenance-free
•     Dimensions / Weight Dimensions See «Dimensions» on page 5
•     Weight See «Overview of types» on page 1
